Introduction:
Canning is a method of preserving food in which the food contents are processed and sealed in an airtight container (jars like Mason jars, and steel and tin cans). Canning provides a shelf life typically ranging from one to five years, although under specific circumstances it can be much longer.[1] A freeze-dried canned product, such as canned dried lentils, could last as long as 30 years in an edible state. In 1974, samples of canned food from the wreck of the Bertrand, a steamboat that sank in the Missouri River in 1865, were tested by the National Food Processors Association. Although appearance, smell and vitamin content had deteriorated, there was no trace of microbial growth and the 109-year-old food was determined to be still safe to eat
History and development of canning
French origins
During the first years of the Napoleonic Wars, the French government offered a hefty cash award of 12,000 francs to any inventor who could devise a cheap and effective method of preserving large amounts of food. The larger armies of the period required increased and regular supplies of quality food. Limited food availability was among the factors limiting military campaigns to the summer and autumn months. In 1809, Nicolas Appert, a French confectioner and brewer, observed that food cooked inside a jar did not spoil unless the seals leaked, and developed a method of sealing food in glass jars.[3] Appert was awarded the prize in 1810 by Count Montelivert, a French minister of the interior.[4] The reason for lack of spoilage was unknown at the time, since it would be another 50 years before Louis Pasteur demonstrated the role of microbes in food spoilage.

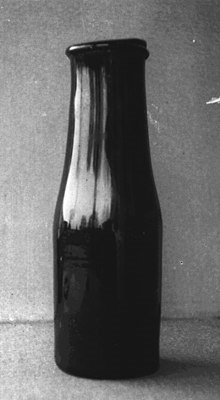

Appert canning jar
In the United Kingdom
In Europe
During the mid-19th century, canned food became a status symbol amongst middle-class households in Europe, being something of a frivolous novelty. Early methods of manufacture employed poisonous lead solder for sealing the cans. Studies in the 1980s attributed the lead from the cans as a factor in the disastrous outcome of the 1845 Franklin expedition to chart and navigate the Northwest Passage.[8]Later studies found this to be false.[9] Increasing mechanization of the canning process, coupled with a huge increase in urban populations across Europe, resulted in a rising demand for canned food. A number of inventions and improvements followed, and by the 1860s smaller machine-made steel cans were possible, and the time to cook food in sealed cans had been reduced from around six hours to thirty minutes.
In the United States
World War I
Demand for canned food skyrocketed during World War I, as military commanders sought vast quantities of cheap, high-calorie food to feed their millions of soldiers, which could be transported safely, survive trench conditions, and not spoil in transport. Throughout the war, British soldiers generally subsisted on low-quality canned foodstuffs, such as the British "Bully Beef" (cheap corned beef), pork and beans, canned sausages, and Maconochies Irish Stew, but by 1916, widespread dissatisfaction and increasing complaints about the cheap canned food amongst soldiers resulted in militaries purchasing better-quality food to improve morale, and complete meals-in-a-can began to appear. In 1917, the French Army began issuing canned French cuisine, such as coq au vin, Beef Bourguignon and Vichyssoise while the Italian Armyexperimented with canned ravioli, spaghetti bolognese, Minestrone and Pasta e fagioli. Shortages of canned food in the British Army in 1917 led to the government issuing cigarettes and amphetamines to soldiers to suppress their appetites. After the war, companies that had supplied military canned food improved the quality of their goods for civilian sale.
Methods
The original fragile and heavy glass containers presented challenges for transportation, and glass jars were largely replaced in commercial canneries with cylindrical tin can or wrought-iron canisters (later shortened to "cans") following the work of Peter Durand (1810). Cans are cheaper and quicker to make, and much less fragile than glass jars. Glass jars have remained popular for some high-value products and in home canning. Can openers were not invented for another thirty years — at first, soldiers had to cut the cans open with bayonets or smash them open with rocks.[citation needed] Today, tin-coated steel is the material most commonly used. Laminate vacuum pouches are also used for canning, such as used in MREs and Capri Sun drinks. To prevent the food from being spoiled before and during containment, a number of methods are used: pasteurisation, boiling (and other applications of high temperature over a period of time), refrigeration, freezing, drying, vacuum treatment, antimicrobial agents that are natural to the recipe of the foods being preserved, a sufficient dose of ionizing radiation, submersion in a strong saline solution, acid, base, osmotically extreme (for example very sugary) or other microbially-challenging environments. Other than sterilization, no method is perfectly dependable as a preservative. For example, the microorganism Clostridium botulinum (which causes botulism) can be eliminated only at temperatures above the boiling point of water. From a public safety point of view, foods with low acidity (a pH more than 4.6) need sterilization under high temperature (116–130 °C). To achieve temperatures above the boiling point requires the use of a pressure canner. Foods that must be pressure canned include most vegetables, meat, seafood, poultry, and dairy products. The only foods that may be safely canned in an ordinary boiling water bath are highly acidic ones with a pH below 4.6,[10] such as fruits, pickled vegetables, or other foods to which acidic additives have been added.
Double seams
Invented in 1888 by Max Ams,[11] modern double seams provide an airtight seal to the tin can. This airtight nature is crucial to keeping micro-organisms out of the can and keeping its contents sealed inside. Thus, double seamed cans are also known as Sanitary Cans. Developed in 1900 in Europe, this sort of can was made of the traditional cylindrical body made with tin plate. The two ends (lids) were attached using what is now called a double seam. A can thus sealed is impervious to contamination by creating two tight continuous folds between the can's cylindrical body and the lids. This eliminated the need for solder and allowed improvements in manufacturing speed, reducing cost. Double seaming uses rollers to shape the can, lid and the final double seam. To make a sanitary can and lid suitable for double seaming, manufacture begins with a sheet of coated tin plate. To create the can body, rectangles are cut and curled around a die, and welded together creating a cylinder with a side seam. Rollers are then used to flare out one or both ends of the cylinder to create a quarter circle flange around the circumference. Precision is required to ensure that the welded sides are perfectly aligned, as any misalignment will cause inconsistent flange shape, compromising its integrity. A circle is then cut from the sheet using a die cutter. The circle is shaped in a stamping press to create a downward countersink to fit snugly into the can body. The result can be compared to an upside down and very flat top hat. The outer edge is then curled down and around about 140 degrees using rollers to create the end curl. The result is a steel tube with a flanged edge, and a countersunk steel disc with a curled edge. A rubber compound is put inside the curl.
• End
• Flange
• End Curl
• Body
• Countersink
Second operation
The seaming head then engages the second operation roller against the partly formed seam. The second operation presses all five steel components together tightly to form the final seal. The five layers in the final seam are then called; a) End, b) Body Hook, c) Cover Hook, d) Body, e) Countersink. All sanitary cans require a filling medium within the seam because otherwise the metal-to-metal contact will not maintain a hermetic seal. In most cases, a rubberized compound is placed inside the end curl radius, forming the critical seal between the end and the body. Probably the most important innovation since the introduction of double seams is the welded side seam. Prior to the welded side seam, the can body was folded and/or soldered together, leaving a relatively thick side seam. The thick side seam required that the side seam end juncture at the end curl to have more metal to curl around before closing in behind the Body Hook or flange, with a greater opportunity for error. Seamer setup and quality assurance Many different parts during the seaming process are critical in ensuring that a can is airtight and vacuum sealed. The dangers of a can that is not hermetically sealed are contamination by foreign objects (bacteria or fungicide sprays), or that the can could leak or spoil. One important part is the seamer setup. This process is usually performed by an experienced technician. Amongst the parts that need setup are seamer rolls and chucks which have to be set in their exact position (using a feeler gauge or a clearance gauge). The lifter pressure and position, roll and chuck designs, tooling wear, and bearing wear all contribute to a good double seam. Incorrect setups can be non-intuitive. For example, due to the springback effect, a seam can appear loose, when in reality it was closed too tight and has opened up like a spring. For this reason, experienced operators and good seamer setup are critical to ensure that double seams are properly closed. Quality control usually involves taking full cans from the line – one per seamer head, at least once or twice per shift, and performing a teardown operation (wrinkle/tightness), mechanical tests (external thickness, seamer length/height and countersink) as well as cutting the seam open with a twin blade saw and measuring with a double seam inspection system. The combination of these measurements will determine the seam's quality. Use of a statistical process control (SPC) software in conjunction with a manual double-seam monitor, computerized double seam scanner, or even a fully automatic double seam inspection system makes the laborious process of double seam inspection faster and much more accurate. Statistically tracking the performance of each head or seaming station of the can seamer allows for better prediction of can seamer issues, and may be used to plan maintenance when convenient, rather than to simply react after bad or unsafe cans have been produced.[12]
Nutritional value
Canning is a way of processing food to extend its shelf life. The idea is to make food available and edible long after the processing time. A 1997 study found that canned fruits and vegetables are as rich with dietary fiber and vitamins as the same corresponding fresh or frozen foods, and in some cases the canned products are richer than their fresh or frozen counterparts.[13] The heating process during canning appears to make dietary fiber more soluble, and therefore more readily fermented in the colon into gases and physiologically active byproducts. Canned tomatoes have a higher available lycopene content. Consequently, canned meat and vegetables are often among the list of food items that are stocked during emergencies.[14]
Potential hazards
Women working in a cannery
In the beginning of the 19th century the process of canning foods was mainly done by small canneries. These canneries were full of overlooked sanitation problems, such as poor hygiene and unsanitary work environments. Since the refrigerator did not exist and industrial canning standards were not set in place it was very common for contaminated cans to slip onto the grocery store shelves. [15]
Migration of can components
In canning toxicology, migration is the movement of substances from the can itself into the contents.[16] Potential toxic substances that can migrate are lead, causing lead poisoning, or bisphenol A (BPA), a potential endocrine disruptor that is an ingredient in the epoxy commonly used to coat the inner surface of cans. Some cans are manufactured with a BPA-free enamel lining produced from plant oils and resins.[17]On 20 February 2018, Packaging Digest reported that "At least 90%" of food cans no longer contained BPA.[18]
Salt content
Salt (sodium chloride), dissolved in water, is used in the canning process.[19] As a result, canned food can be a major source of dietary salt.[20] Too much salt increases the risk of health problems, including high blood pressure. Therefore, health authorities have recommended limitations of dietary sodium.[21][22][23][24][25] Many canned products are available in low-salt and no-salt alternatives. Rinsing thoroughly after opening may reduce the amount of salt in canned foods, since much of the salt content is thought to be in the liquid, rather than the food itself.[26]
Botulism
Foodborne botulism results from contaminated foodstuffs in which C. botulinum spores have been allowed to germinate and produce botulism toxin,[27] and this typically occurs in canned non-acidic food substances that have not received a strong enough thermal heat treatment. C. botulinum prefers low oxygen environments and is a poor competitor to other bacteria, but its spores are resistant to thermal treatments. When a canned food is sterilized insufficiently, most other bacteria besides the C. botulinum spores are killed, and the spores can germinate and produce botulism toxin.[27] Botulism is a rare but serious paralytic illness, leading to paralysis that typically starts with the muscles of the face and then spreads towards the limbs.[28] The botulinum toxin is extremely dangerous because it cannot be detected by sight or smell, and ingestion of even a small amount of the toxin can be deadly.[29] In severe forms, it leads to paralysis of the breathing muscles and causes respiratory failure. In view of this life-threatening complication, all suspected cases of botulism are treated as medical emergencies, and public health officials are usually involved to prevent further cases from the same source.[28]
Canning and economic recession
Canned goods and canning supplies sell particularly well in times of recession due to the tendency of financially stressed individuals to engage in cocooning, a term used by retail analysts to describe the phenomenon in which people choose to stay at home instead of adding expenditures to their budget by dining out and socializing outside the home. In February 2009 during a recession, the United States saw an 11.5% rise in sales of canning-related items.[30] Some communities in the US have county canning centers which are available for teaching canning, or shared community kitchens which can be rented for canning one's own foods
Reference
1- Research and laboratory team of Bandar food industry
2. Wikipedia
3. The book of canning industries, principles and applications, authored by Javad Hesari
4. Canning, Rasoul Payan Engineer
